LiFePO4 Batteries for Construction Machinery

LiFePO4 Batteries for Construction Machinery

ROYPOW high-voltage lithium batteries for construction machinery provide large battery capacity, high power output, efficient liquid cooling, long cycle life, and exceptional durability to handle the most demanding jobsite conditions. Suitable for excavators, wheel loaders, bulldozers, mining trucks, mixers, and other heavy-duty construction equipment.

Product Overview
Product Specifications
PDF Download

Flexible Capacity Expansion

Efficient

Liquid Cooling

Grade A

LFP Cells

＞4,000 Times

of Cycle Life

4G Intelligent

Control

Intelligent BMS

IP68 Ingress Rating

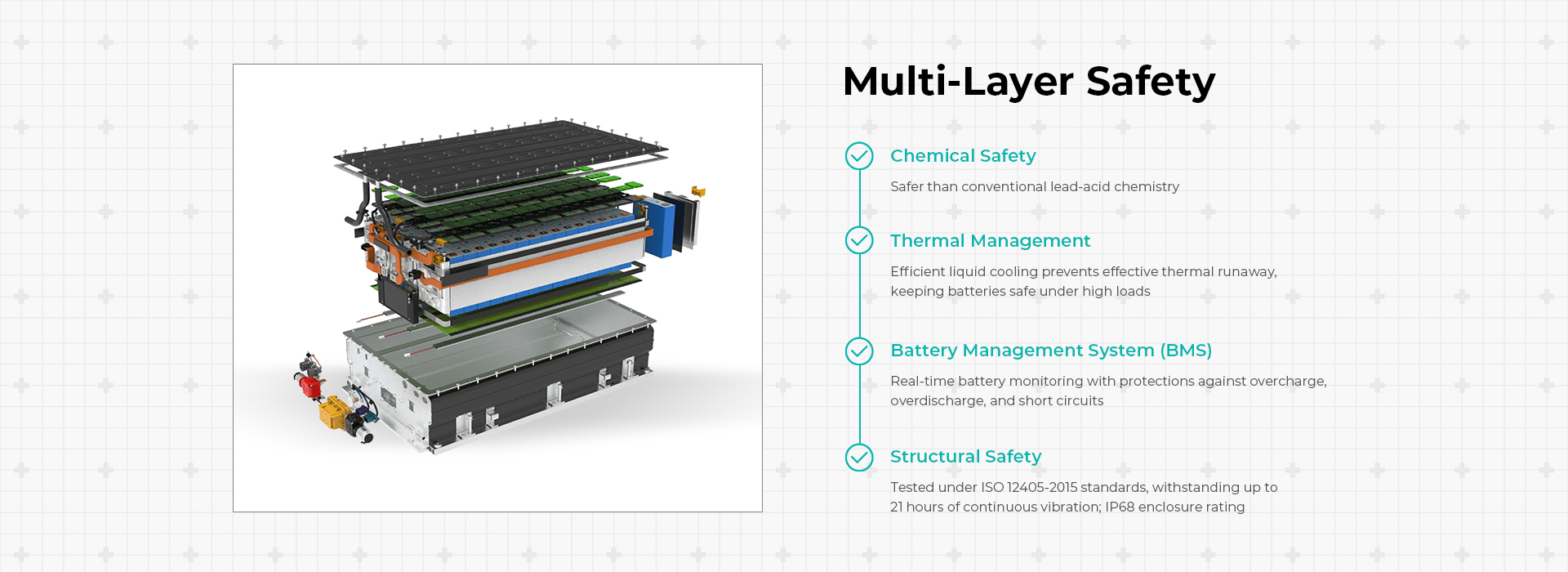

Multiple Safety Protection

Technical Specifications

Pack Model	C230	C320	G230	G230
Dimension (mm/inch)	1070x630x240 mm (42.13×24.8×9.45 inch)		956x630x240 mm (37.64×24.8×9.45 inch)
Rated Capacity (Ah)	230	320	230	320
Rated Voltage (V)	153.6	115.2	124.8	96
Rated Energy (kWh)	35.32	36.86	28.7	30.72
Cooling Method	Liquid Cooling

Electrical Performance Parameters

Pack Model	C230	C320	G230	G230
Working Voltage Range (V) 0℃＜T≤65℃	120~175.2	90~131.4	97.5~142.35	75~109.5
Working Voltage Range (V) -20℃≤T≤0℃	96~175.2	72~131.4	78~142.35	60~109.5
Max. Continuous Charge Rate	1C
Pulse Discharge Rate	3C@10s
Pulse Regeneration Rate	1.5C@30s
Max. System Voltage	750V
Max. System Series Connection	4S	5S	5S	6S
Max. System Parallel Connection	3P
Certification	R100, UN38.3
Ingress Protection	IP68, IPX9K
