Diesel Generator ESS Solution PowerFusion Series X500KT

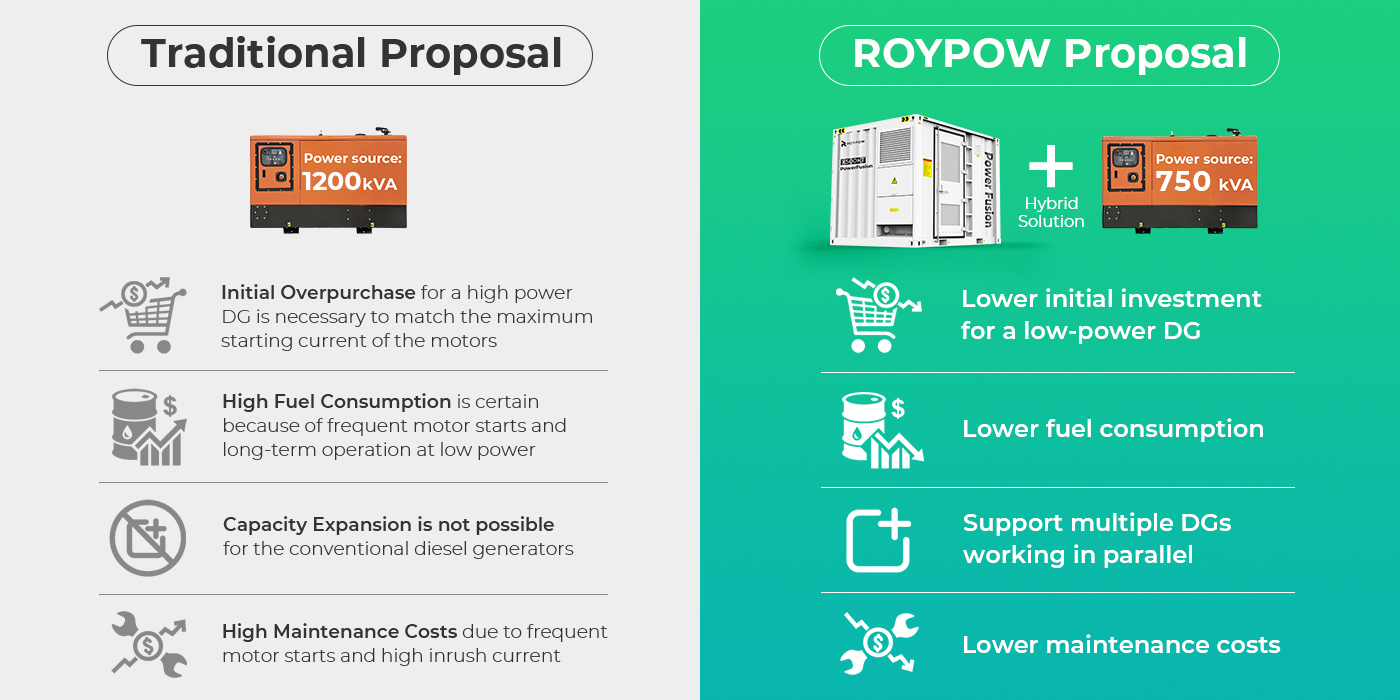

ROYPOW PowerFusion Series X500KT Diesel Generator Hybrid Energy Storage System is designed to reduce fuel consumption by over 30% intelligently, enable downsizing of diesel generators (DGs) to lower initial investment, mitigate load impacts to minimize wear and tear while extending the DG’s service life, and ultimately lower the total cost of ownership. Ideal for construction sites, mining operations, large-scale outdoor events, high-altitude applications, and other demanding environments.

Product Overview
Product Specifications
PDF Download

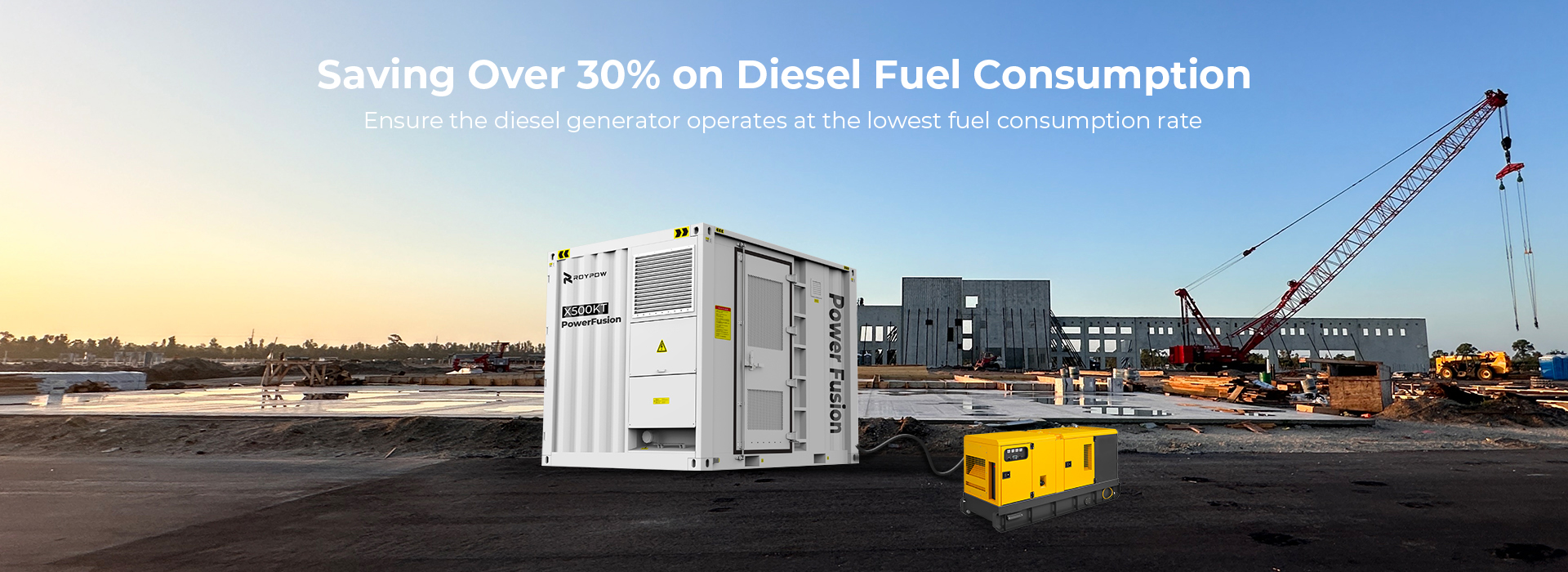

Saving Over 30%

on Fuel Consumption

Up to 4 Sets

in Parallel

Plug and Play

Load Sharing

AC-Coupling

All-In-One Battery

+ SEMS
+ SPCS

Intelligent Management

via APP and Web

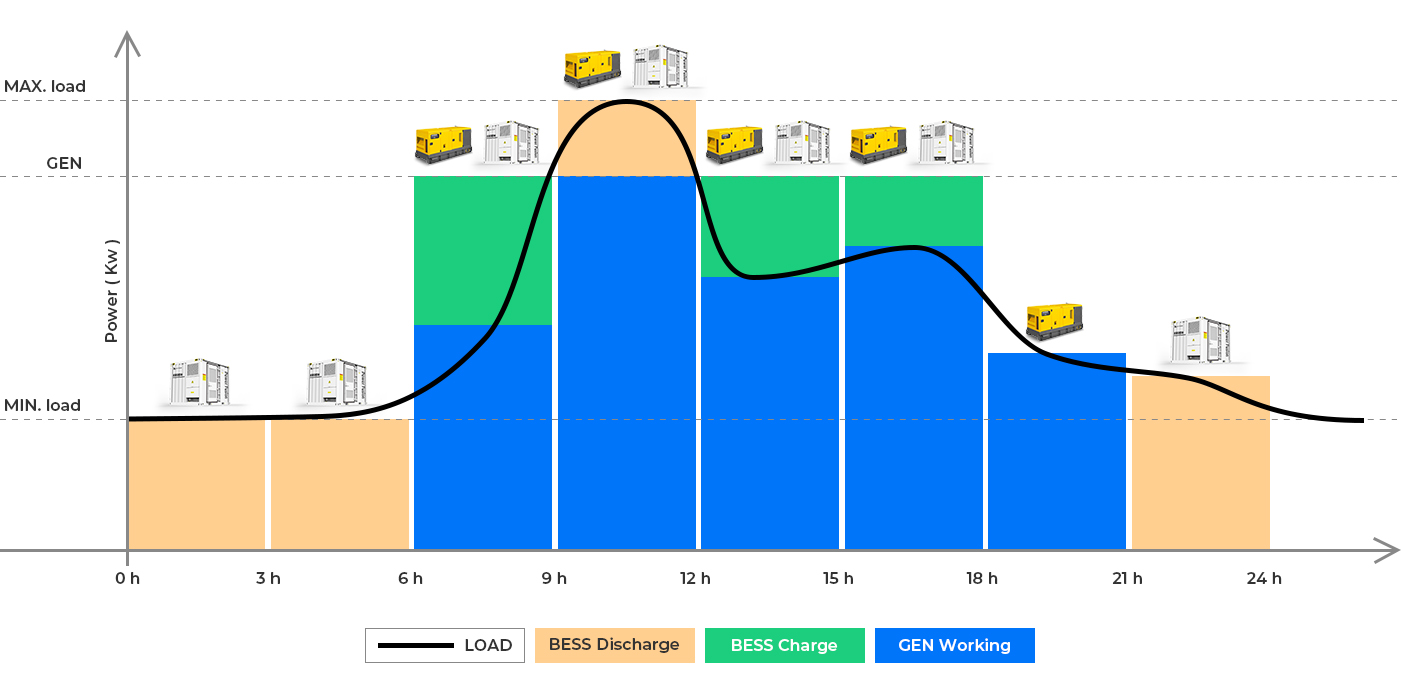

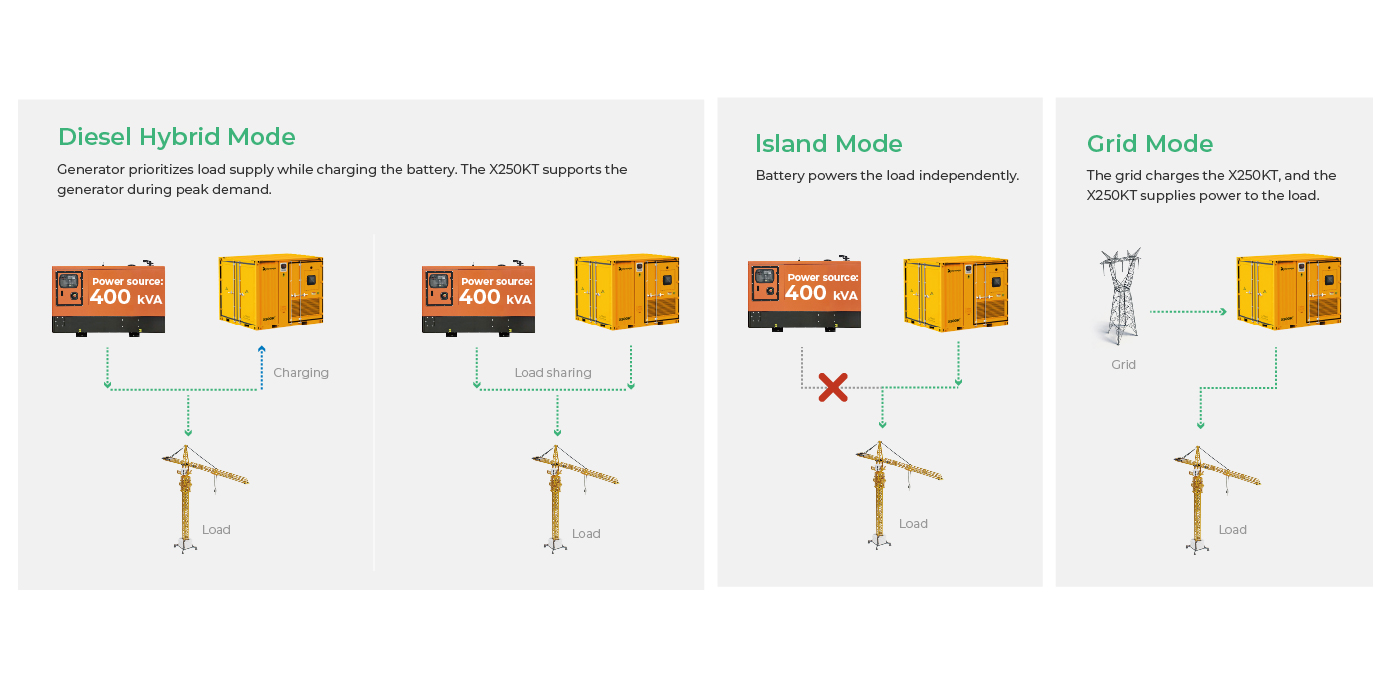

Hybrid Mode

for Uninterrupted Power supply

AC Output Data (On-grid Mode)

Rated Power	500 kW
Max. Output Power	550 kW (@20s)
Rated Voltage	400 V (±15%)
Rated Current	721 A
Grid Frequency	50 Hz
AC Connection	3 W + N + PE
THDI	≤ 3%
Power Factor	-1 ~ +1

AC Output Data (Off-grid Mode)

Rated Power	500 kW
Max. Rated / Apparent Power	500 kW / 500 kVA
Rated Voltage / Frequency	400 V / 50 Hz
THDV (Linear Load	≤3%

Battery Data

Battery Chemistry	LiFePO4
Nominal Energy	465.9 kWh
Working Voltage Range	600 V ~ 876 V
Nominal Charging Current	280 A (0.5C)
Nominal Discharging Current	2 x 280 A (1C)
Max. Discharging Current	750 A
DOD	90%

Compatible Diesel Generator

Rated Power	≤850 kVA
Rated Voltage	400 V
Rated Frequency	50 Hz

General

Parallel Capable	Yes ( Up to 4)
EMS	SEMS3000 12 inch LCD Touch Panel
Ingress Rating	IP54
Topology	Transformer
Working Temperature	-4 ~ 122℉ (-20 ~ 50℃)
Storage Temperature	-40 ~ 149℉ (-40 ~ 65℃)
Relative Humidity	5 ~ 95% (No condensing)
System Noise	<65dB
Cooling	Liquid Cooling
Fire Suppression System	Included
Altitude	5,000 (>3,000 derating)
Dimensions, LxWxH	114.17 x 90.55 x 94.49 inch (2900 x 2300 x 2400 mm)
Weight	18739.29 lbs (8,500 kg)
