80V 690Ah Air-Cooled LiFePO4 Forklift Battery

F80690AK

Technical Specifications

Rated Voltage: 80V
Rated Capacity: 690Ah
Rated Energy: 55.2kWh
Dimension (LxWxH) in Inch: 40.1 x 38.58 x 29.92
Dimension (LxWxH) in Millimeters: 1020 x 980 x 760
Weight: 2070 kg / 4563 lbs
Counter Weight: 1731 kg / 3816 lbs
Cycle Life: ＞3,500 Times
Ingress Rating: IP54

The ROYPOW F80690AK is a high-performance, air-cooled forklift battery engineered to optimize performance and extend runtime in light-duty material handling applications with frequent start-stop operations.

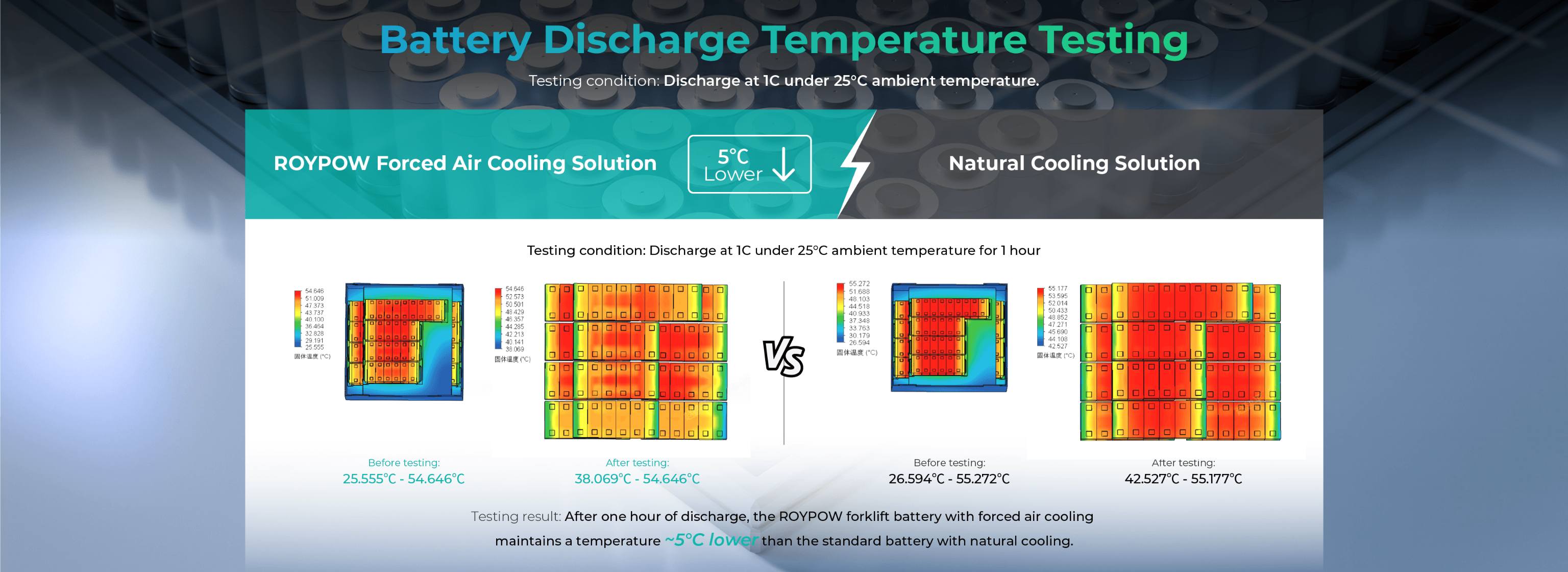

Compared to conventional lithium forklift batteries, the air-cooling solution generates approximately 5°C less heat during operation, helping maintain thermal stability, improve efficiency, and extend battery lifespan.

Equipped with Grade A LFP cells, intelligent BMS, smart 4G module for real-time monitoring, built-in fire extinguishing system, this 80V 690Ah air-cooled lithium forklift battery is the ideal choice to empower safe and reliable material handling operations.

Enquiry Now Data Sheet

Benefits

5 Years
of Warranty
Zero Maintenance
without Frequent Swapping
Safety and sustainability
reducing carbon footprint
Smart 4G Module for Real-Time
Remote Monitoring and Upgrades
Grade A
LFP Cell
Intelligent BMS for Efficient
and Reliable Operations
Intelligent Forced
Air Cooling Design
10 Years of Design Life &
＞3,500 Times of Cycle Life

Benefits

5 Years
of Warranty
Zero Maintenance
without Frequent Swapping
Safety and sustainability
reducing carbon footprint
Smart 4G Module for Real-Time
Remote Monitoring and Upgrades
Grade A
LFP Cell
Intelligent BMS for Efficient
and Reliable Operations
Intelligent Forced
Air Cooling Design
10 Years of Design Life &
＞3,500 Times of Cycle Life

Wide Applications

ROYPOW air-cooled lithium forklift battery can be used in high-temp regions (eg, Middle East, Southeast Asia, Africa, Asia, and Latin America), cargo handling yards (eg, ports and logistics parks), chemical industry workplaces, steel mills, coal plants, etc.

Wide Applications

TECH & SPECS

Rated Voltage (V)	80	Voltage Range (V)	65~91.25
Rated Capacity (Ah)	690	Rated Energy (kWh)	55.2
Cycle Life (Times)	＞3.500	Continuous Charge / Discharge Current (A)	200 / 450
Peak Discharge Current (A)	540	Dimension (L x W x H, mm / inch)	1020 x 980 x 760 (40.1 x 38.58 x 29.92)
Weight (kg / lbs)	2070 / 4563	Counter Weight (kg / lbs)	1731 / 3816
Ingress Rating	IP54	Discharge Plug	REMA 320A Female
Charge Plug	REMA 320A Male

Note:

1. Forklift battery solutions can be customized according to customer needs.
2. All data are based on ROYPOW standard test procedures, actual performance may vary according to local conditions.
