Liquid-Cooled LiFePO4 Forklift Battery

Technical Specifications

Rated Voltage: 80V, 90V, 96V, 114V
Operating Voltage Range: 65~135V
Rated Energy: 55.2kWh
Liquid Inlet / Outlet Temperature: 20℃ / 21~24℃
Rated Cooling Power: 2kW
Optimal Battery Temperature: 20℃~35℃
Water Pump Rated Head / Flow: 8m / 30L/min

Designed for demanding material handling applications, including high-throughput warehouses, manufacturing plants, multi-shift operations, and high-temperature environments, the ROYPOW liquid-cooled lithium forklift battery delivers stable and reliable power where uptime matters most.

The advanced liquid cooling system regulates cell temperature under heavy loads, preventing performance degradation and ensuring consistent output, enhanced safety, and extended battery lifespan. In extreme conditions, the lithium battery system minimizes downtime, reduces maintenance needs, and lowers the total cost of ownership.

Request a Quote Data Sheet

Benefits

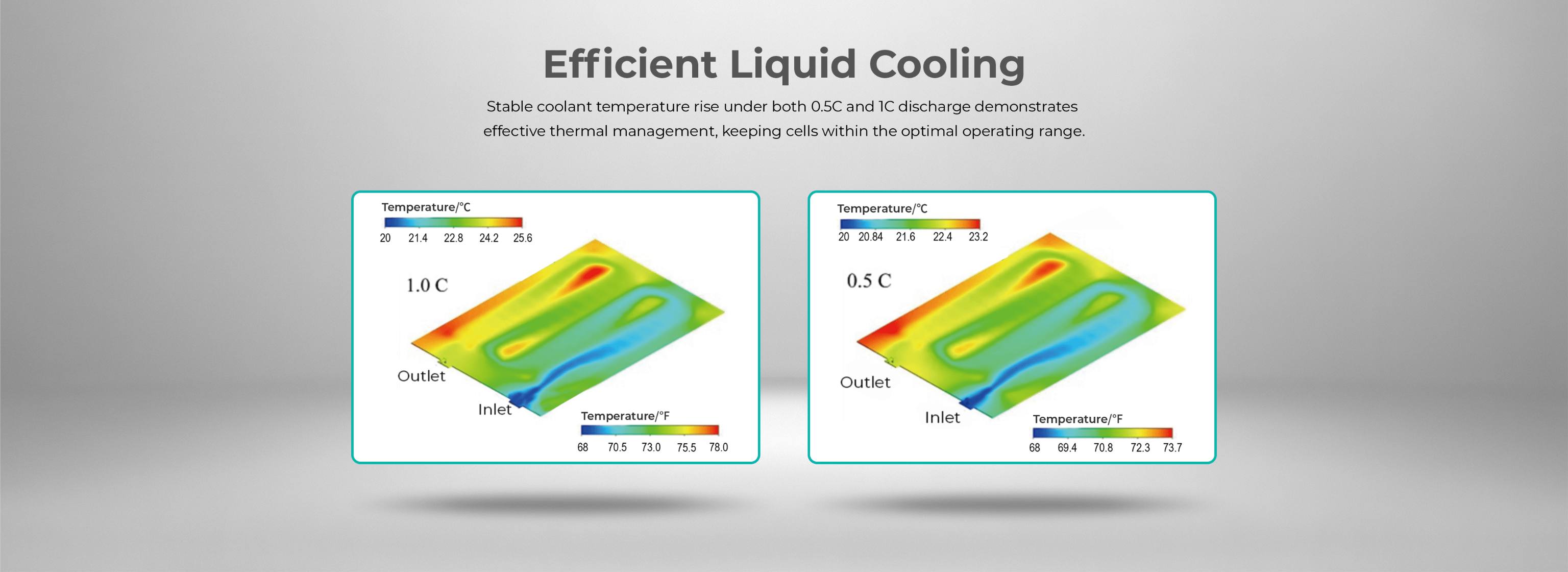

Efficient Liquid Cooling
-30~60℃ Operating
Temperature Range
3,500 Times
of Cycle Life
Grade A LFP Cell
Intelligent BMS
4G Remote
Monitoring
IP67 Ingress
Protection
8 Years
of Warranty

Benefits

Efficient Liquid Cooling
-30~60℃ Operating
Temperature Range
3,500 Times
of Cycle Life
Grade A LFP Cell
Intelligent BMS
4G Remote
Monitoring
IP67 Ingress
Protection
8 Years
of Warranty

TECH & SPECS

Rated Voltage	80V, 90V, 96V, 114V	Operating Voltage Range	65~135V
Liquid Inlet / Outlet Temperature	20℃ / 21~24℃	Rated Cooling Power	2kW
Optimal Battery Temperature	20℃~35℃	Water Pump Rated Head / Flow	200 / 450

Note:

1. Forklift battery solutions can be customized according to customer needs.
2. All data are based on ROYPOW standard test procedures, actual performance may vary according to local conditions.
