The ROYPOW 270kVA / 108kWh PowerBoost Series mobile energy storage system is designed to provide clean, reliable temporary power for heavy-duty tower cranes, hoists, and other high-power inductive equipment on construction sites.

Engineered to handle fluctuating load demands and reduce diesel generator runtime, it delivers stable power while improving energy efficiency and minimizing environmental impact.

With a rugged design, plug-and-play deployment, and intelligent energy management, the mobile energy storage system provides an efficient temporary power solution for modern construction sites, helping lower overall operating costs.

Power Challenges on Construction Sites

Power Supply Mismatch

Heavy machinery demands high surge power, while available grid capacity is often limited, leading to voltage drops, unstable operation, or oversized backup systems.

High Operating Costs

Diesel generators operate inefficiently under partial and fluctuating loads, resulting in excessive fuel consumption, increased wear, and higher maintenance costs.

Noise & Emission Restrictions

Diesel generators generate noise and emissions, facing increasing restrictions in urban and environmentally sensitive areas.

Lack of Energy Management

No buffering of peak loads or intelligent control. Difficult to optimize power use or integrate renewables.

Features & Benefits

Powerful Performance

Rated at 270kVA with a peak current output of 462A, the system delivers instant high-current power for high-inrush loads.
Reduced Diesel Generator Dependency

Reduces diesel generator runtime during low and fluctuating loads, lowering fuel consumption, maintenance needs, and operating costs.
Advanced Thermal Management

Dual-side liquid cooling ensures efficient heat dissipation, enabling stable performance under high-power operation, while extending the cell lifespan by up to 30%.

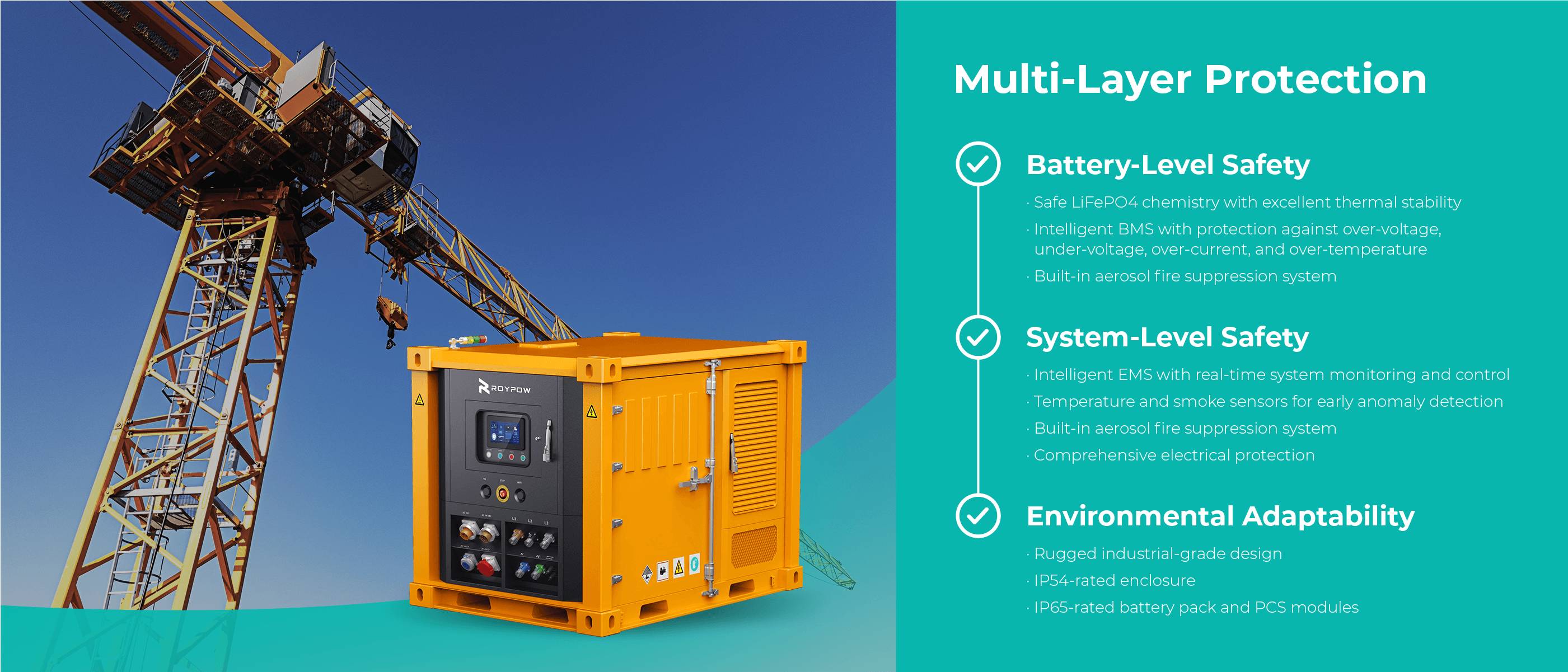

Comprehensive Safety

Multi-level safety protection, including aerosol fire suppression, ensures safe and reliable operation throughout the lifecycle.
Simplified Installation & Maintenance

The highly integrated cabinet combines battery, PCS, controller, and charging modules for plug-and-play installation and simplified on-site maintenance.
Minimized Carbon Footprint

Achieves lower emissions, advancing sustainable operations to support ESG goals.

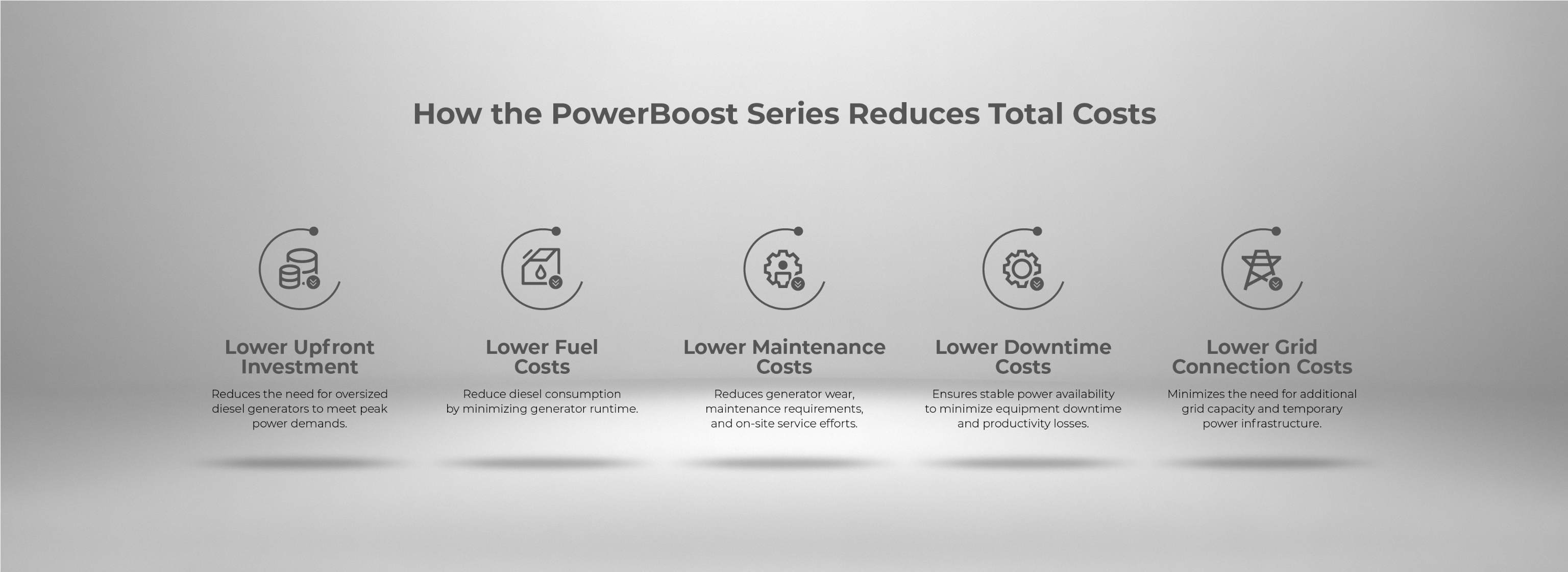

How the PowerBoost Series Reduces Total Costs

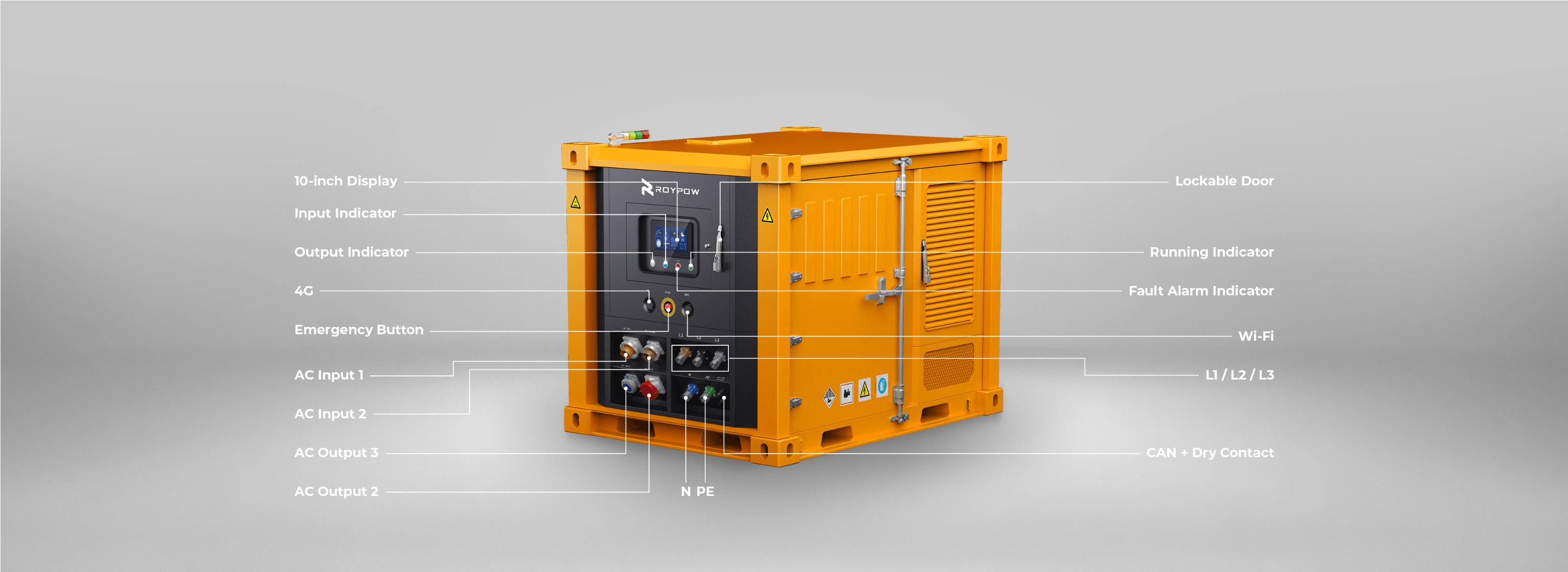

ROYPOW Tower crane energy storage system

1. What equipment can the 270kVA / 108kWh PowerBoost Series power?

+

The system is designed to provide stable power for high-power inductive equipment, including tower cranes, hoists, and other construction machinery with fluctuating load demands.
2. How does the system handle high startup currents from inductive loads?

+

The system supports 462A high burst power to handle startup currents and fluctuating loads from equipment, ensuring stable operation.
3. What are the available power input options for the PowerBoost Series?

+

The PowerBoost Series mobile energy storage system supports power input from both the grid and diesel generators, providing flexible charging options for different construction site conditions.
4. Can the PowerBoost Series operate in off-grid or power-limited areas?

+

Yes. When grid power is unavailable or insufficient, the mobile energy storage system can be charged by diesel generators to provide continuous and reliable power for construction equipment.
5. How is the system deployed on construction sites?

+

The all-in-one mobile design enables quick deployment with plug-and-play installation, minimizing setup requirements for temporary power applications.
