120V 1120Ah Lithium Forklift Battery

F1201120C

Technical Specifications

Nominal Voltage: 121.6V
Nominal Capacity: 1120Ah
Stored Energy: 136.19kWh
Dimension (L x W x H) in Inch: 66.06 x 34.62 x 30.7 inch (Box A) / 66.06 x 33.93 x 30.7 inch (Box B)
Dimension (L x W x H) in Millimeter: 1678 x 879.5x 780 mm (Box A) / 1678 x 862x 780 mm (Box B)
Weight lbs. (kg) No Counterweight: 13104.28±220.46 lbs. (5944±100 kg)
Life Cycle: ＞3,500 Cycles
IP Rating: IP65

ROYPOW 120V 1120Ah lithium forklift battery is designed for high-capacity electric forklifts that require reliable power and extended operating hours in demanding material handling applications. Its high energy capacity enables longer runtime with fewer charging interruptions, helping maximize productivity in warehouses, ports, manufacturing facilities, and logistics centers.

Built with Grade A LiFePO4 cells and an intelligent Battery Management System (BMS), the battery delivers stable performance, fast opportunity charging, and maintenance-free operation. With a design life of over 10 years and more than 3,500 charge cycles, it helps reduce downtime, lower maintenance costs, and decrease the total cost of ownership compared with traditional lead-acid batteries.

Request a Quote Data Sheet

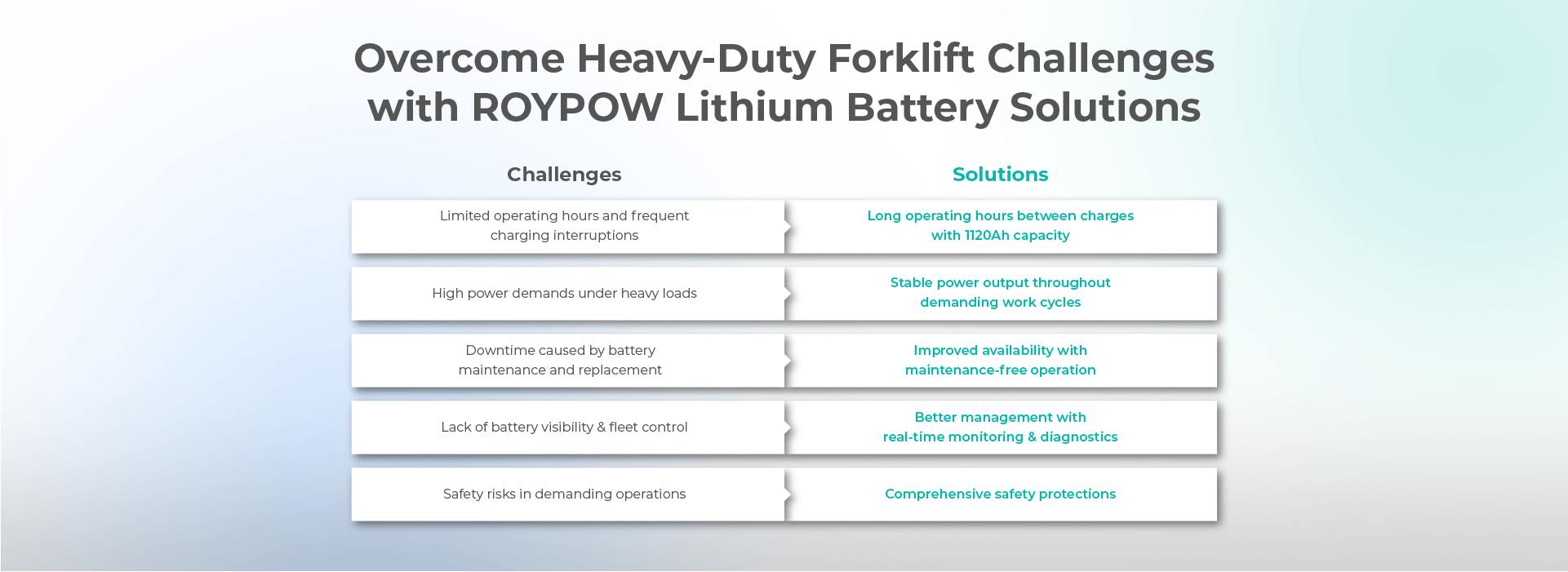

Why Choose ROYPOW 96V 840Ah Lithium Forklift Battery

1120Ah high-capacity design for extended runtime
10+ years of design life with 3,500+ cycles

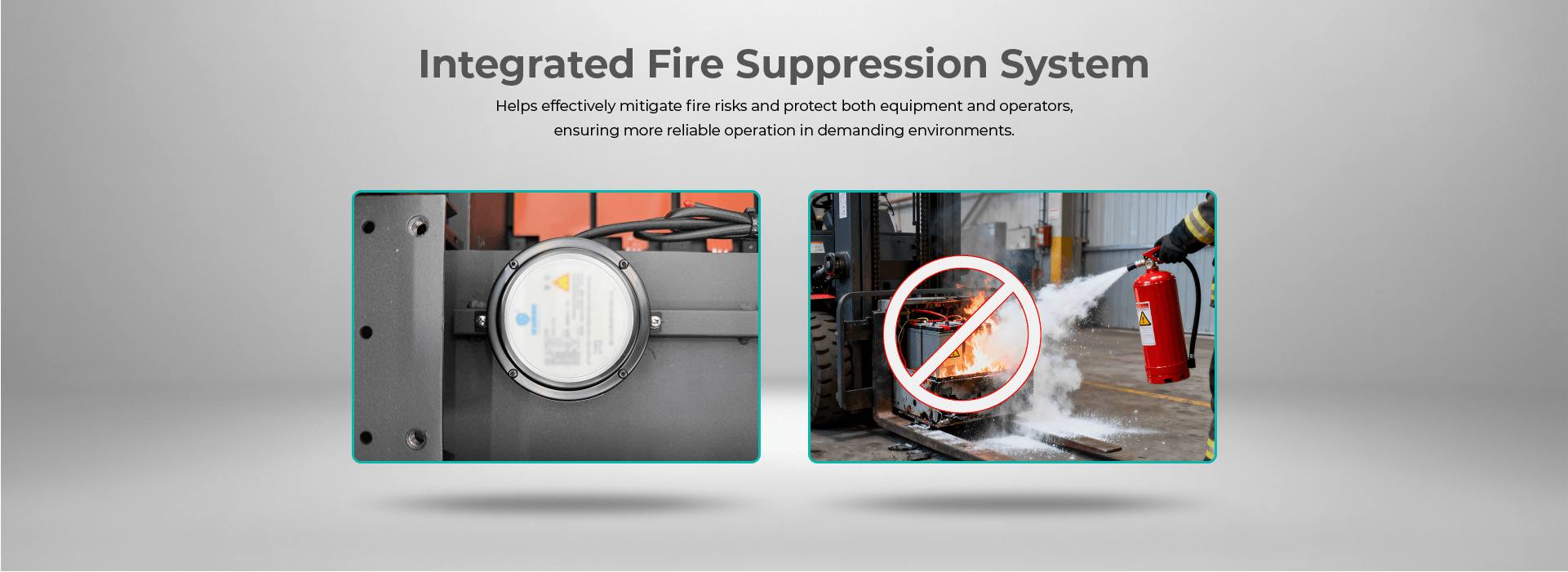

Enhanced safety with integrated fire suppression and intelligent BMS
Maximized fleet availability with fast opportunity chargin
4G cloud monitoring for smart fleet management
Reduced service costs with maintenance-free operation
Consistent power delivery for demanding heavy-duty applications
Lower total cost of ownership throughout the battery lifecycle

Powered by Advanced Technology

Intelligent-BMS
- Real-Time Monitoring of Battery Status
- Real-Time Communication Through CAN
- Multi-Level Safety Protection
- Full-Time Cell Balancing
- Charge & Discharge Efficiency Optimization
- Fault Alarm
- Real-Time Monitoring of Battery Status
- Real-Time Communication Through CAN
- Multi-Level Safety Protection
- Full-Time Cell Balancing
- Charge & Discharge Efficiency Optimization
- Fault Alarm
4G-Cloud-Platform
- Smart Management via App & Web
- Real-Time Monitoring of Battery Status
- SIM-Free Network Connectivity in 135+ Countries
- Remote Diagnosis and Maintenance
- Equipment Position Tracking & Locking
- OTA Updates
- Smart Management via App & Web
- Real-Time Monitoring of Battery Status
- SIM-Free Network Connectivity in 135+ Countries
- Remote Diagnosis and Maintenance
- Equipment Position Tracking & Locking
- OTA Updates

TECH & SPECS

Nominal Voltage	121.6V	Nominal Capacity	1120Ah
Stored Energy	136.19kWh	Weight lbs. (kg) No Counterweight	13104.28±220.46 lbs. (5944±100 kg)
Box A Dimension (L x W x H)	66.06 x 34.62 x 30.7 inch / 1678 x 879.5x 780 mm	Box B Dimension (L x W x H)	66.06 x 33.93 x 30.7 inch / 1678 x 862x 780 mm
Continuous Charge / Discharge	320A / 640A	Maximum Charge / Discharge	320A / 840A
Charge Working Temperature	-20~55℃ / -4~131℉	Discharge Working Temperature	-20~55℃ / -4~131℉
Storage Temperature (Within 1 Month)	-20~45℃ / -4~113℉	Storage Temperature (Within 1 Year)	0~35℃ / 32~95℉
Heating Function	Yes	IP Rating	IP65
Life Cycle	＞3,500	Casing Material	Metal
